Variable Frequency Drives

NEMA 4X (IP65) indoor rated

  • Disconnects available
  • 0-10 vdc speed controls available
  • Filtered and non-filtered
  • All size VFD’s available to fit your needs

Description

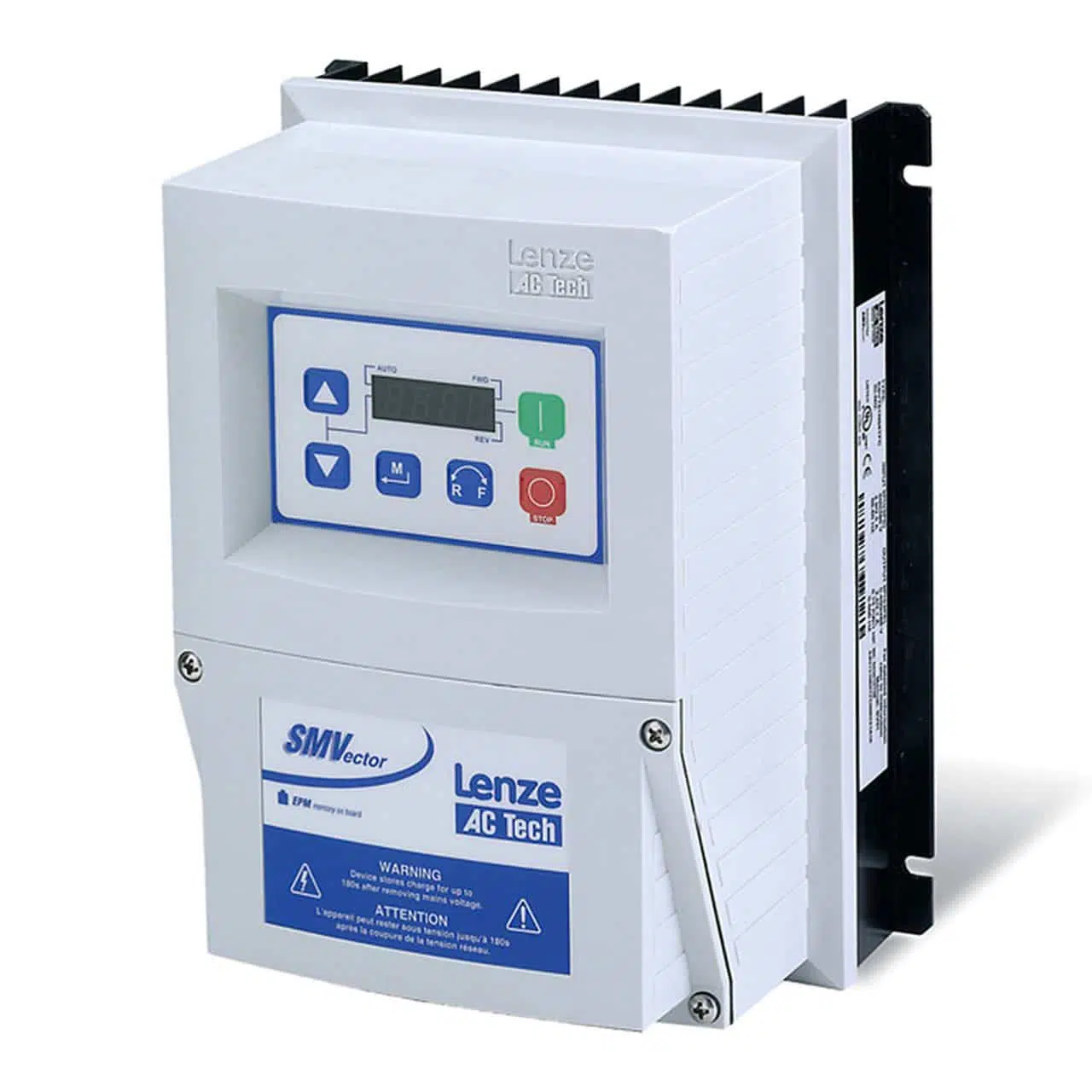

SMV NEMA 4X (IP65) frequency inverters

LENZE SMV NEMA 4X (Up to 10 HP) Keypad

Offer exemplary performance even in extreme environments.

Decentralized SMVector NEMA 4X (IP65) frequency inverters suitable for wall mounting.

Performance data:

  • Line voltage: 1 AC 120/240 V, 0.50 to 1.5 Hp (0.37 to 1.1 kW), 2.4 to 6 A
  • Line voltage: 1/3 AC 200/240 V, 0.50 to 3.0 Hp (0.37 to 2.2 kW), 2.4 to 9.6 A
  • Line voltage: 3 AC 200/240 V, 5.36 to 20.0 Hp (4.0 to 15 kW), 16.5 to 54 A
  • Line voltage: 3 AC 400/480 V, 0.50 to 30.0 Hp (0.37 to 22 kW), 1.1 to 46 A
  • Line voltage: 3 AC 600 V, 1.0 to 30.0 Hp (0.75 to 22 kW), 1.7 to 32 A

Particularly suitable for: production equipment in the food industry, drives used outdoors.

Advantages:

  • Connections: start/stop, analog input, freely programmable digital inputs and outputs (4/1)
  • Communication: Modbus/RS485, CANopen, DeviceNet, EtherNet/IP, PROFIBUS
  • A variety of housing versions
  • LED display
  • High degree of protection NEMA 4X IP65
