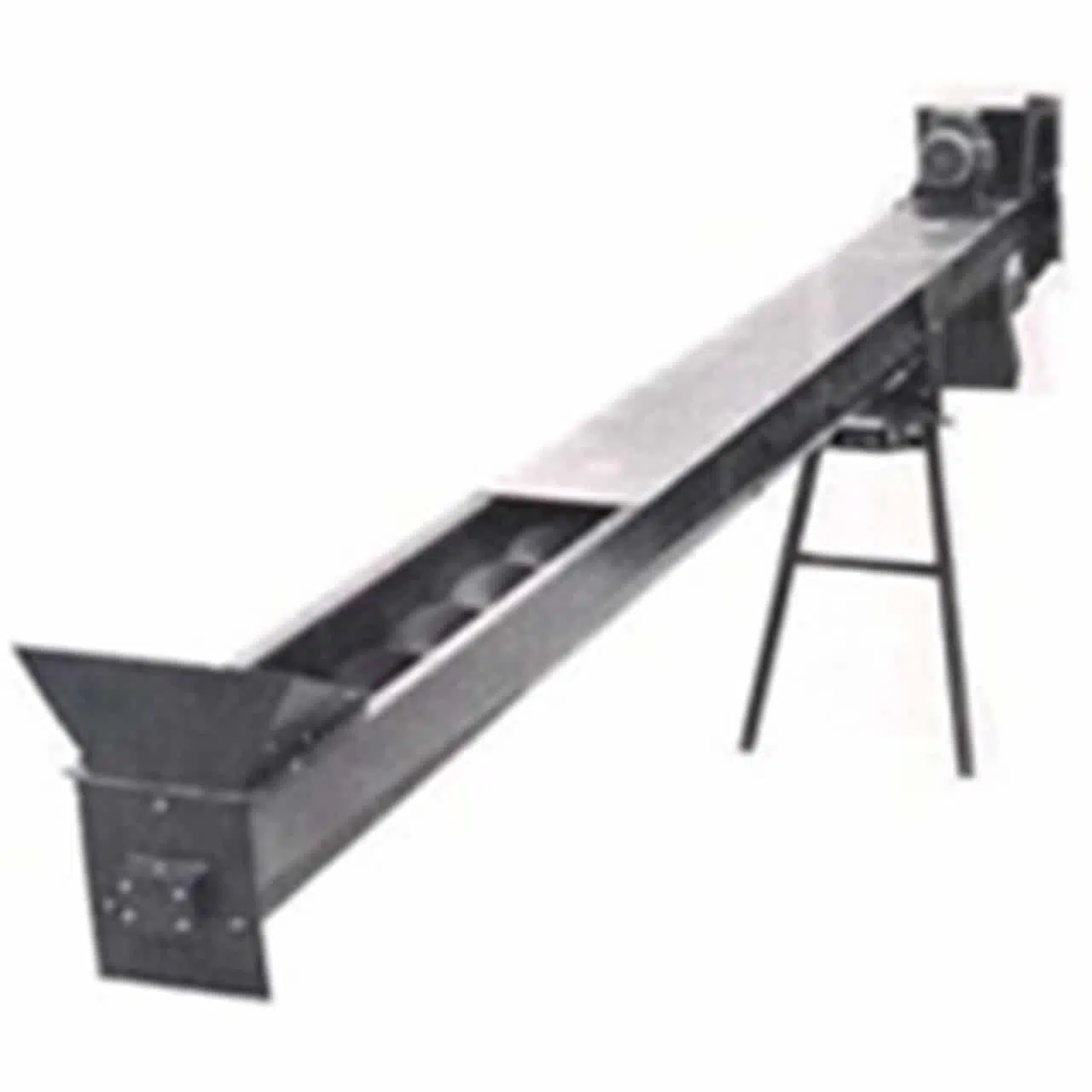

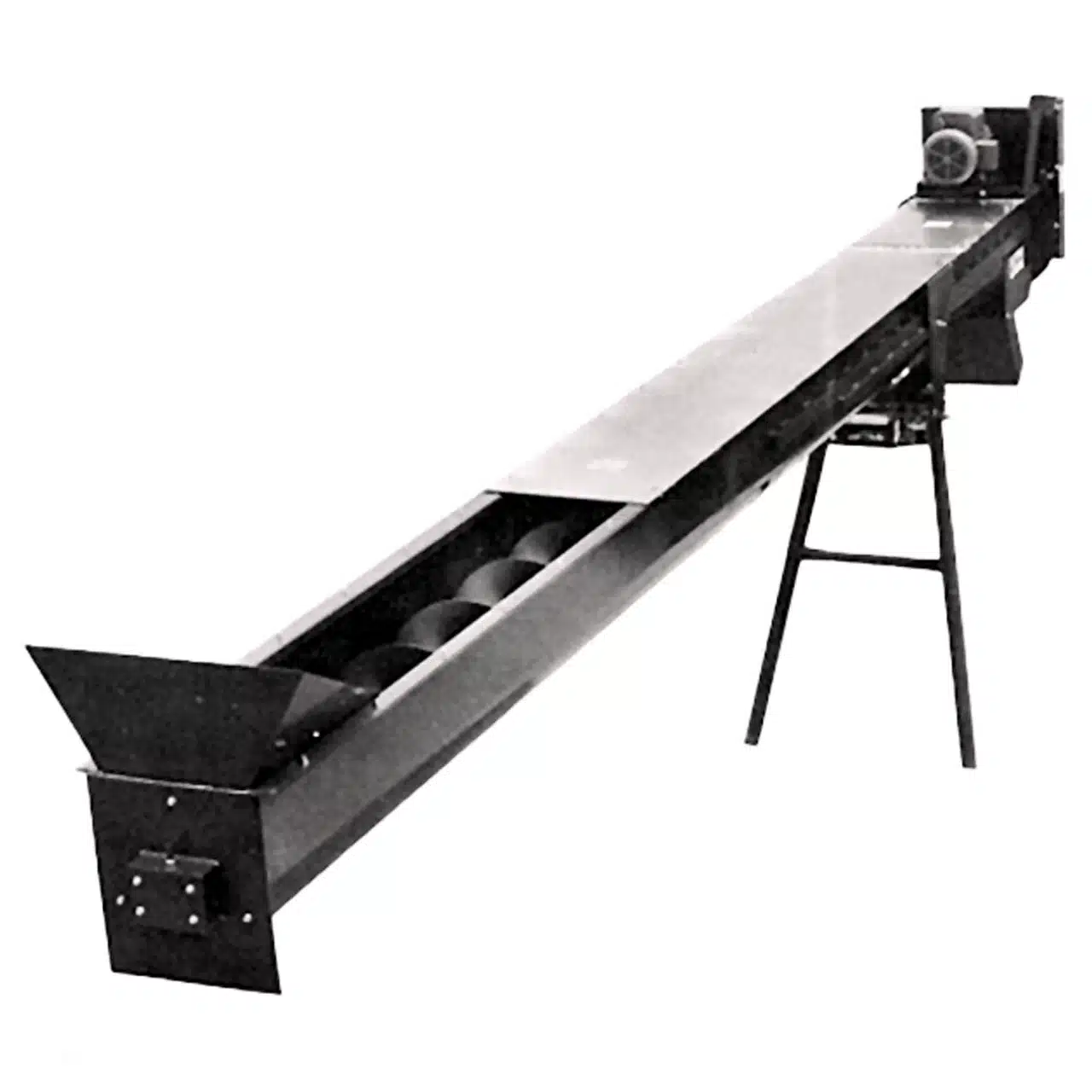

Agromatic Manure Auger

MODELS:
16, 18, 20, 22, 24

Maximum incline of 35%. Includes 60# roller chain drive, standard hopper, automatic roller chain oiler, safety cover, safety hopper guard, black Agrithane liner and one coat primer with enamel finish. Available 16′, 18′, 20′, 22′ and 24′ lengths. 5 HP to 7 1/2 HP recommended.

Description

  • 16′ to 20′ models have a one piece auger with a 4” tube. Maximum length for a one piece auger is 20’.
  • 22′ and 24′ models have a two piece auger with a 2 3/8” tube and hanger bearing.
  • Recommended maximum degree of incline for augers to be used in slurry type manure is 35 degrees. If a greater degree of incline is needed a PVC auger cap is recommended.
  • When sizing an auger length, always figure a usable length 18” shorter than model length. EXAMPLE: 18’ usable length is 16’ 6”.
  • Includes 60# roller chain drive, standard hopper, automatic roller chain oiler, safety cover, safety hopper guard, black Agrithane liner and one coat primer with enamel finish.
  • 5 HP or 7½ HP motor is recommended.
