Patz 6000 E Manure Pump

Description

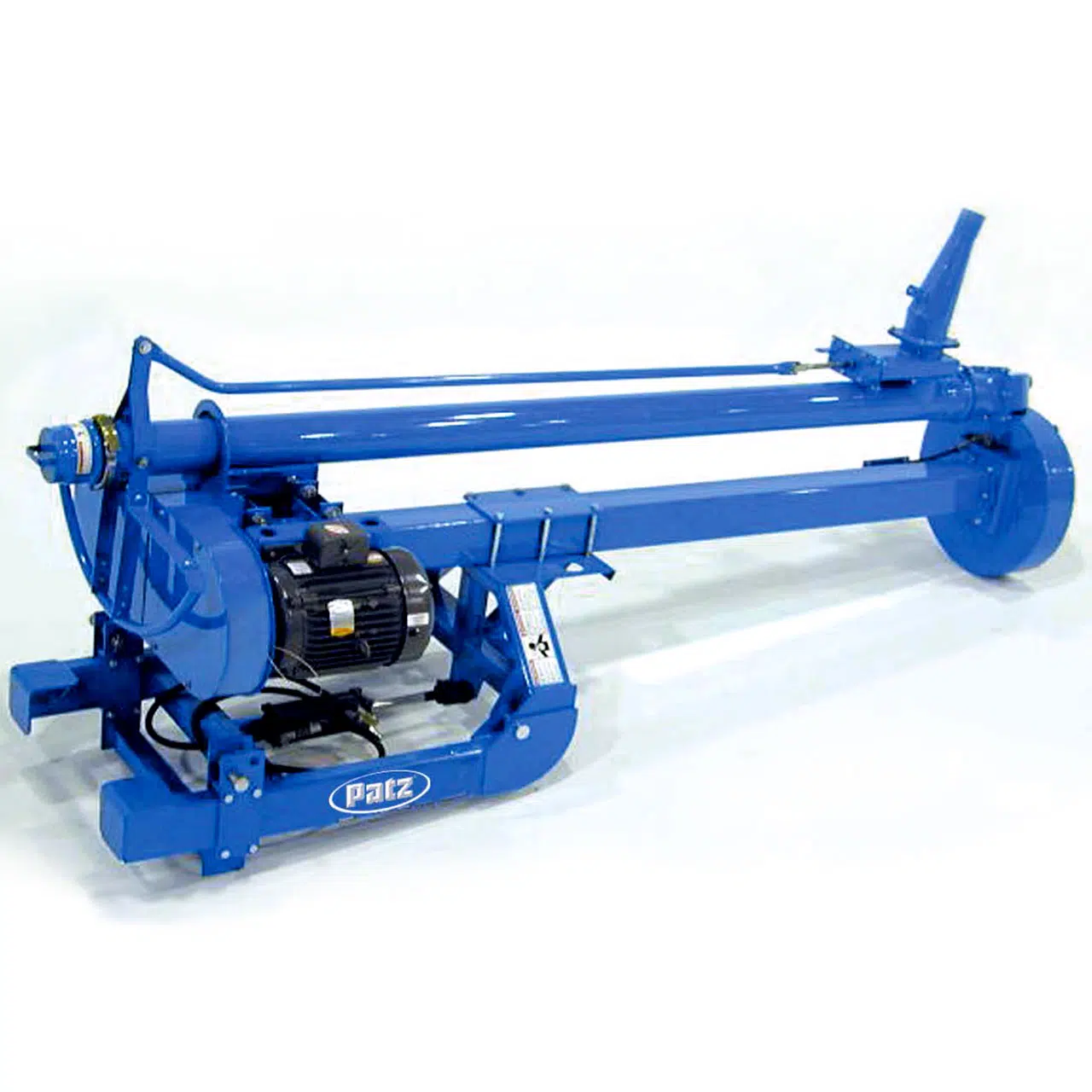

Patz Model 6000E Electric Manure Pump

The Patz 6000E Manure Pump is a high-capacity, electric-powered solution designed for efficient handling of liquid manure and wastewater in commercial and agricultural pit systems. With a flow rate of up to 2,500 gallons per minute during agitation, this electric manure pump is ideal for operations that demand performance, ease of use, and reduced maintenance.

Engineered with a twin-motor belt drive system, the 6000E reduces stress on the upper drive shaft and bearings, helping to extend the service life of critical components. The unit includes a manual riser pipe slide and tilt mount kit for quick positioning, and its unique plumbing system eliminates the need to enter the pit for setup or operation.

Available in four lengths from 6 to 12 feet, this vertical manure pit pump delivers reliable agitation, transfer, and loading for a wide range of manure consistency and volume needs.

Applications

The Patz 6000E is ideal for use in:

• Dairy or swine farms with deep storage pits
• Operations requiring stationary, electric-powered pit pumps
• Loading tankers, transferring to storage, or agitating settled solids
• Facilities where minimal manual labor and easy servicing are priorities

Key Features & Benefits

High-Capacity Performance

• Pumps up to 2,500 gallons/min during agitation and 2,200 gallons/min during loading
• Swept-back impeller blades for improved flow and reduced clogging
• Impeller housing made of abrasion-resistant steel for long-term durability

Electric-Drive Efficiency

• Twin motor belt drive system supports 15, 20, 25, or 30 HP 3-phase electric motors
• Reduces wear on the upper shaft and bearings for extended operating life
• Stationary base mounts directly to the pit, providing a secure and stable setup

User-Friendly Operation

• Includes manual riser pipe slide and tilt mount kit for fast, simple insertion
• Adjustable frame with large U-bolts allows precise depth alignment
• Built-in agitation nozzle rotates horizontally for better pit clean-out

Reliable, Low-Maintenance Design

• Transparent oil line allows easy visual checks
• Tapered roller bearings in an oil bath chamber are protected by three seals
• Shear and shredder plate reduces blockages from straw and fibrous material

Why Choose a Patz Manure Pump?

The Patz 6000E is part of the trusted Patz lineup of electric manure pumps, known for their rugged design, long-term reliability, and efficient high-volume flow. Built for operators who need safe, high-capacity pumping without the need for pit entry, this vertical pump delivers both productivity and peace of mind.

Request Info or a Custom Configuration

Click here to contact Schmidt Building & Equipment for specs, availability, and sizing options on a high-capacity, electric-powered pump for your operation.

Frequently Asked Questions

Q: What is the pumping capacity of the 6000E?
A: It delivers up to 2,500 gallons per minute during agitation and 2,200 gallons per minute during loading, depending on material conditions.

Q: What lengths is this pump available in?
A: The 6000E comes in 6, 8, 10, and 12 ft. lengths, supporting pit depths between 1.83 and 3.66 meters.

Q: What type of motor does the 6000E use?
A: It uses a twin-motor belt drive system compatible with 15, 20, 25, or 30 HP, 3-phase electric motors.

Q: Is the 6000E easy to install and remove?
A: Yes. It includes a two-point tractor hitch and manual riser pipe slide with tilt mount kit for easy handling during servicing.

Q: Does it offer agitation capabilities?
A: Yes. A built-in rotating nozzle improves agitation, helping to clean out pits more thoroughly and reduce buildup.

Q: What protects the bearings from contamination?
A: The lower bearings are housed in an oil bath chamber with three protective seals for long-term durability.

Q: What makes this a good electric manure pump option?
A: Its electric drive, high-volume flow, and user-friendly plumbing system make it a top choice for operations that require efficient, low-labor pumping and agitation.
